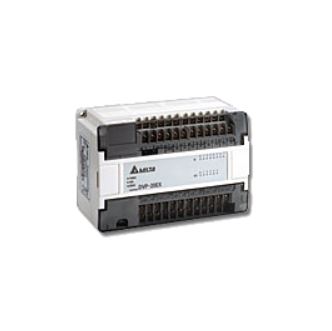

DVP-EX Series 디지털/아날로그 컨트롤
페이지 정보
작성자 관리자 댓글 0건 조회 837회 작성일 20-02-26 10:56본문
- MPU points: 20 (8DI/6DO, 4AI/2AO)
- Max. I/O points: 238
- Program capacity: 4K Steps
- Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII /
RTU communication protocol.
- High-speed pulse output: Supports 2-point (Y0, Y1) independent high-speed pulse output of up to
10KHz.
- Built-in 4-point high-speed counter

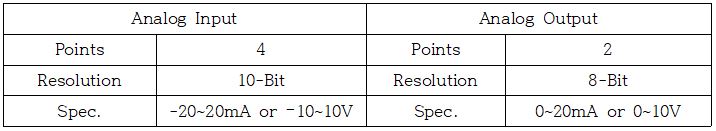

- Built-in analog I/O function
- Max. I/O points: 238
- Program capacity: 4K Steps
- Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII /
RTU communication protocol.
- High-speed pulse output: Supports 2-point (Y0, Y1) independent high-speed pulse output of up to
10KHz.
- Built-in 4-point high-speed counter
- Built-in analog I/O function
첨부파일
- 델타_현대산전_DVP_series_카다로그_E.pdf (13.2M) 12회 다운로드 | DATE : 2020-02-26 10:56:23
- 델타_현대산전_DVP-ES_EX_메뉴얼_E.pdf (2.2M) 10회 다운로드 | DATE : 2020-02-26 10:56:23
