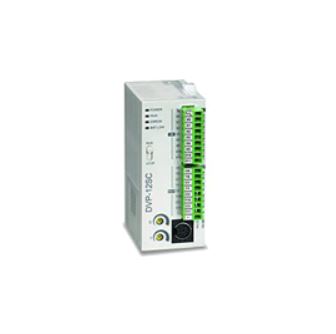

DVP-SC Series 슬림 서보 컨트롤
페이지 정보
작성자 관리자 댓글 0건 조회 907회 작성일 20-02-26 10:48본문
- MPU points: 12
- Max. I/O points: 236
- Program capacity: 8K Steps
- Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol
- High-speed pulse output: Supports 2-point (Y10, Y11) independent high-speed pulse output
of up to 100KHz (total bandwidth: 130KHz).
- Extra 2-axis interpolation. - Supports handy position control instructions.
- By ZRN (zero return), DRVA (absolute position) and DRVI (relative position) instructions,
SC series is able to complete all kinds of motion controls by working with Delta servo
- Built-in high-speed counter
- Max. I/O points: 236
- Program capacity: 8K Steps
- Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol
- High-speed pulse output: Supports 2-point (Y10, Y11) independent high-speed pulse output
of up to 100KHz (total bandwidth: 130KHz).
- Extra 2-axis interpolation. - Supports handy position control instructions.
- By ZRN (zero return), DRVA (absolute position) and DRVI (relative position) instructions,
SC series is able to complete all kinds of motion controls by working with Delta servo
- Built-in high-speed counter
첨부파일
- 델타_현대산전_DVP_series_카다로그_E.pdf (13.2M) 15회 다운로드 | DATE : 2020-02-26 10:48:19
- 델타_현대산전_DVP-SC_메뉴얼_E.pdf (1.4M) 12회 다운로드 | DATE : 2020-02-26 10:48:19
